Looking to add a custom gate to your privacy fence? Building your own wooden gate is a rewarding project that not only enhances security and privacy but also complements your existing fence design.
In this guide, we’ll walk you through everything you need—from tools and materials to detailed steps—to build a sturdy, well-aligned gate that lasts.
Why This Plan Works
- Customizable: This plan is adaptable to different fence styles, sizes, and materials.
- Strong & Durable: Using pressure-treated wood and solid metal hardware ensures longevity.
- DIY-Friendly: With basic tools and a bit of planning, this gate can be built solo.
- Cost-Effective: Building your own gate saves money compared to pre-fabricated options.
- Clean Finish: The method maintains consistent gaps and aesthetic alignment with your fence.
What You Will Need

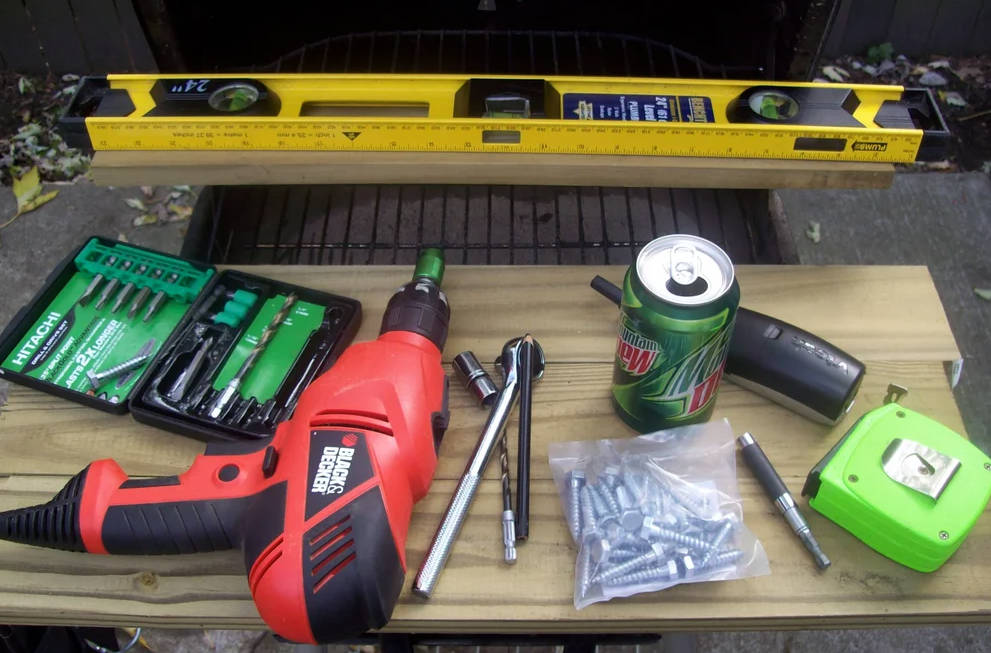

Tools:
- 24″ level (or larger)
- Drill with drill bits
- Tape measure
- Circular saw
- Carpenter’s triangle
- Marking pencil
- Ratchet with socket for bolts
Materials:
- Pressure-treated 2x4x10s for frame
- 6 ft dog-eared fence planks
- Metal L brackets
- Lag bolts (count holes in hardware to determine quantity—used 48)
- Optional: 2×4 for temporary header support, shim
Step 1: Prepare Materials and Tools

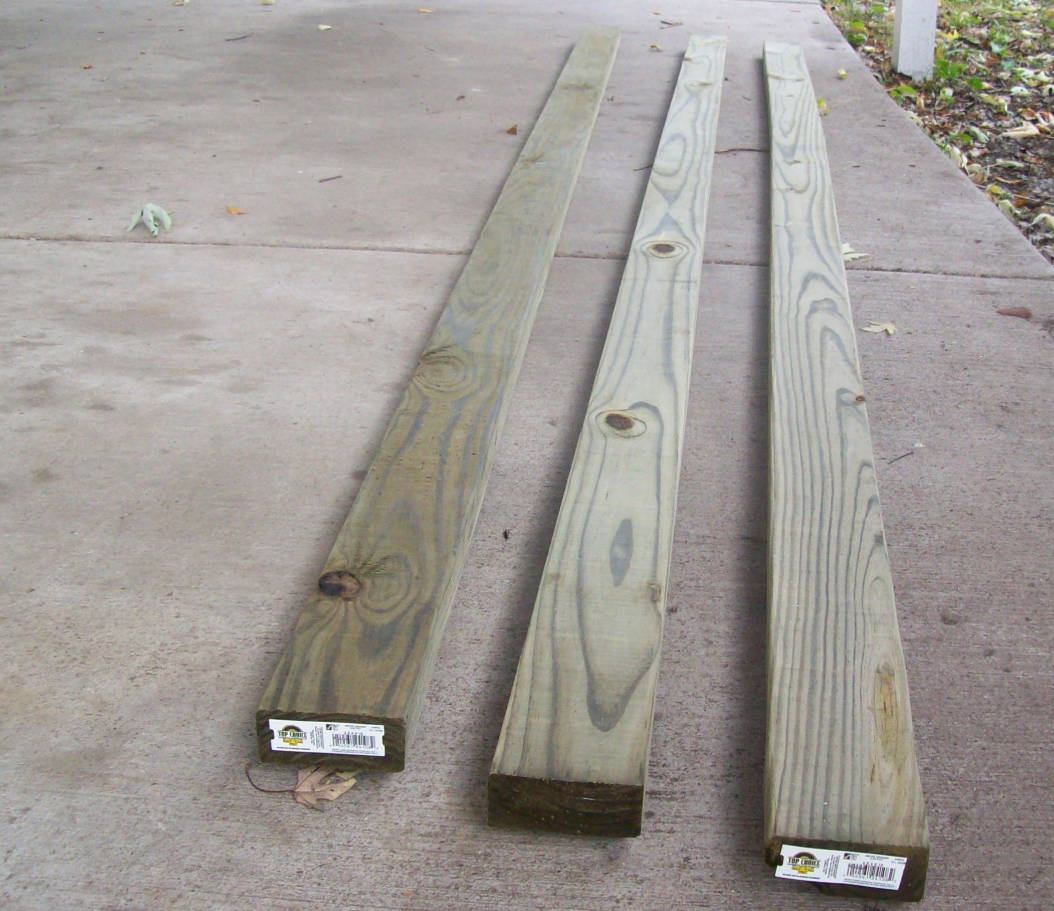

Gather all tools and materials. Choose bolts that match the thickness of your 2x4s to avoid protrusion. For this build, pressure-treated 2x4x10 lumber and 6 ft dog-eared planks were used.
Step 2: Lay Out the Gate Frame
Lay the fence planks on the ground and check spacing. For a 3 ft wide gate, seven planks with standard gaps aligned perfectly. Measure from the bottom of the upper horizontal 2×3 to the top of the lower horizontal 2×4 of your fence to determine frame size.

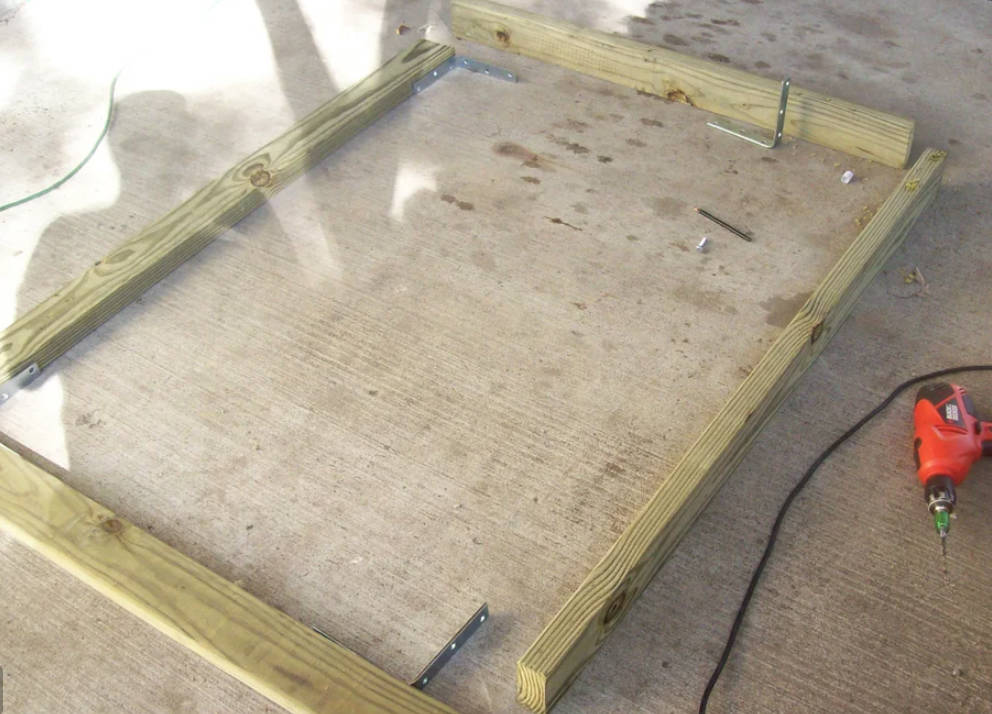

Step 3: Assemble the Frame
Make your cuts and arrange the frame with hardware in place. Ensure squareness before marking holes for L brackets. Drill pilot holes with a bit slightly smaller than the bolts to prevent splitting. Secure with lag bolts, tightening gradually to maintain alignment. A socket wrench was used for all 48 bolts—plan accordingly!
Note: Lag bolts without pilot holes can split wood—drill carefully.

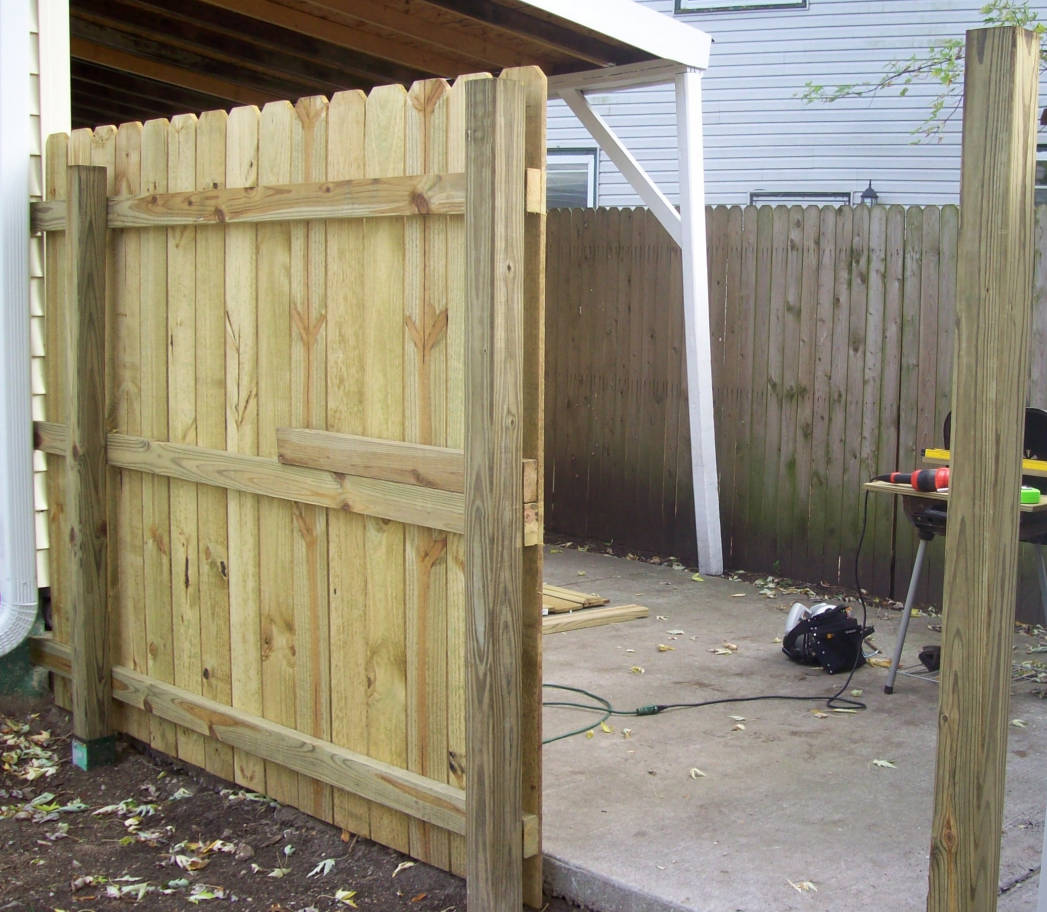

Step 4: Hang the Gate
Position the gate near its final location. Use a temporary nail in a 4×4 post to prevent it from falling. Leverage 2x4s under the gate to set height, then insert a shim between the gate and post to ensure proper clearance.
Add a temporary header (2×4 across the top) for extra support, especially if your gate lacks side fencing.

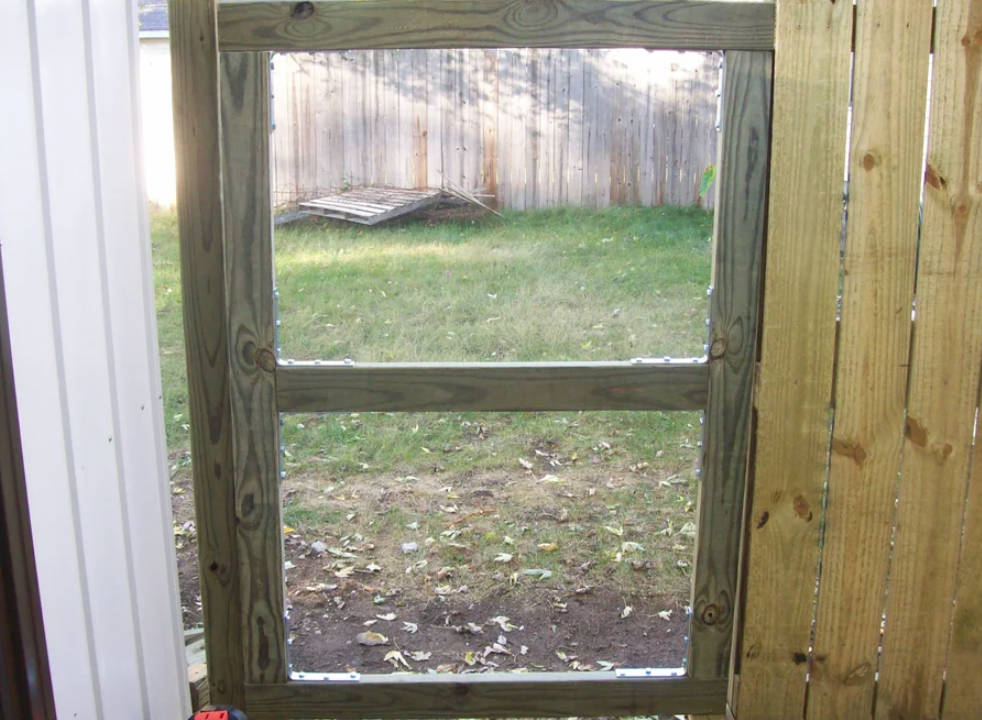

Step 5: Attach Hinges

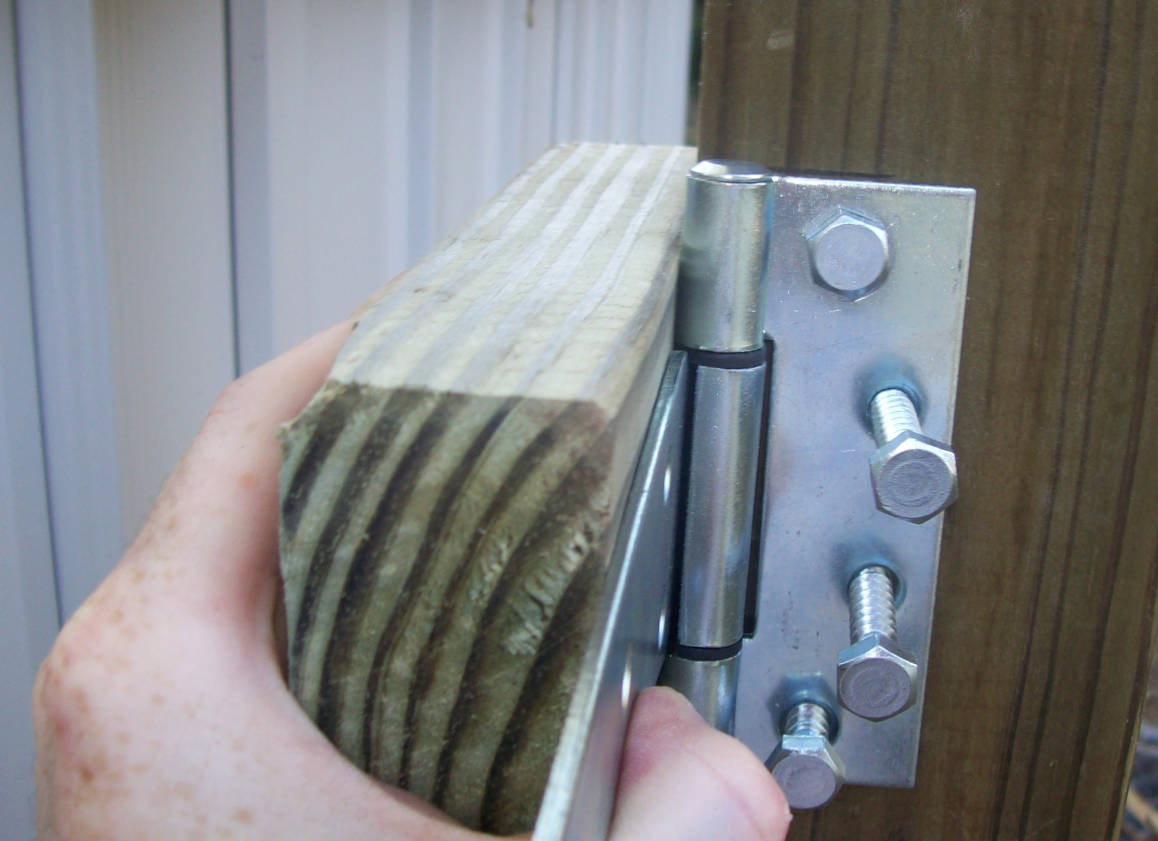

Ensure the gate is level. Mark where each horizontal frame piece meets the hinge-side post. Set the gate aside, remove the nail, and use a 1 ft scrap 2×4 to position hinges vertically.
Mark, drill, and install bolts using the scrap to maintain plumb brackets. Re-position the gate, use the shim, and mark holes on the gate’s hinge side. Drill and secure lag screws.
Note: Continually check alignment for smooth operation before final tightening.

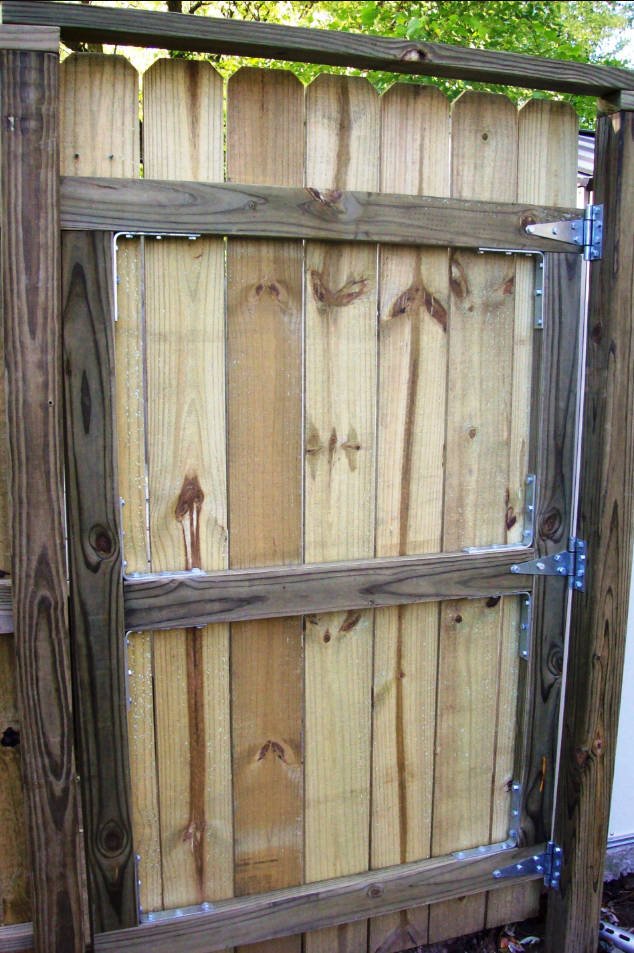

Step 6: Final Touches
Attach fence planks to the frame. Add your choice of latch hardware to secure the gate. The temporary 2×4 header should be replaced with a more permanent support for long-term stability.
Note: Keep tops level and match bottom measurements for consistent alignment.
Other Details Display
- Gate Width: 3 feet
- Frame Material: Pressure-treated 2x4x10
- Plank Type: 6 ft dog-eared
- Hardware Used: L brackets, lag bolts (48), hinge set, latch hardware
- Support: Temporary 2×4 header (upgrade later)
- Gate Clearance: Managed with shim
- Fence Post Type: 4×4, set in concrete
- Hinge Alignment Aid: 1 ft 2×4 scrap for bracket plumb
Summary
Building a wooden gate for a privacy fence is a straightforward project that adds function and charm to your yard. With basic tools, quality materials, and attention to detail, you can create a durable gate tailored to your needs.
This plan is a contribution by [dentsinger]. Project Via Instructables – Get the PDF Instructions here.
