If you’ve ever looked at high-end cat trees and balked at the price tag, you’re not alone. I came across a stunning cat tree in a catalog for a whopping $799.95! That’s when I decided to create my own.
When I saw a pet contest, it was the perfect motivation to get started. In this guide, I’ll take you step-by-step through the process of building a custom cat tree using readily available materials—many of which you may already have at home.
Why This Plan Works
- Budget-Friendly: The materials cost a fraction of what a store-bought cat tree would.
- Customizable: You can adjust the size and design to fit your space and your cat’s preferences.
- Eco-Friendly: By repurposing wood and carpet remnants, you reduce waste while creating something useful.
- Sturdy and Durable: With solid wood construction, this tree will last for years.

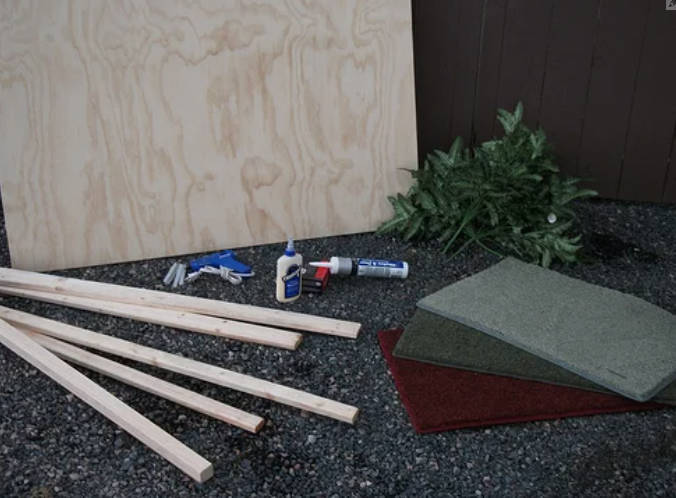

What You Will Need
While I repurposed materials whenever possible, here’s a breakdown of what you might need, along with estimated costs based on Wyoming prices:
- Tree branches (from a dead tree)
- 1–2 furring strips (1″x3″x8’, $1.67 each)
- 1 furring strip (2″x2″x6’, $1.22)
- 4 furring strips (1″x2″x8’, $0.85 each)
- 1/4″ 4’x4′ plywood (Birch: $15.58, or regular plywood: $6.97)
- 1 box of 1-5/8″ drywall or wood screws ($4.58)
- 1 box of 3-1/2″ screws ($8.75)
- 1 box of 1-3/8″ drywall screws ($4.58)
- Wood glue and wood filler
- Hot glue
- Carpet remnants (often free or minimal cost from carpet stores)
- Non-toxic general-purpose adhesive ($6.75) or hook-and-loop fasteners ($9.99)
- Artificial greenery (around $10 per bundle, I used three)
How to Make

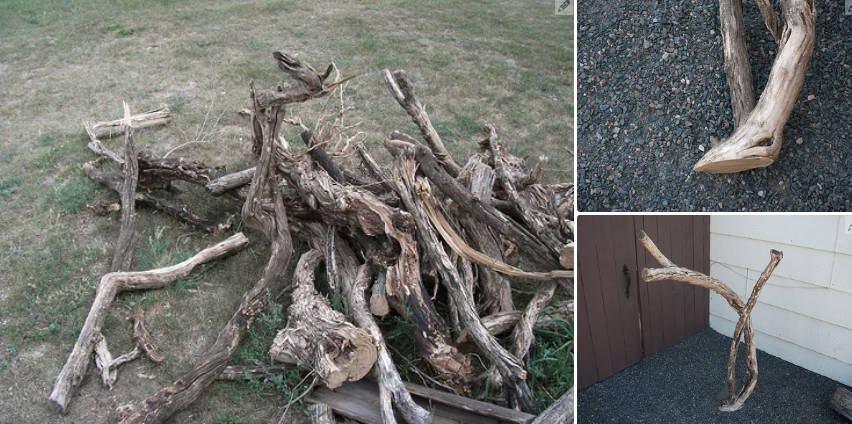

Step 1: Selecting the Main Support (Trunk)
Start by choosing the branches you want to use. Since each tree is unique, arrange the limbs in different ways to determine the best layout. Once you’ve settled on a trunk, cut its base so that it stands steadily on its own. I used a radial arm saw, but a chainsaw or hand saw will also work.

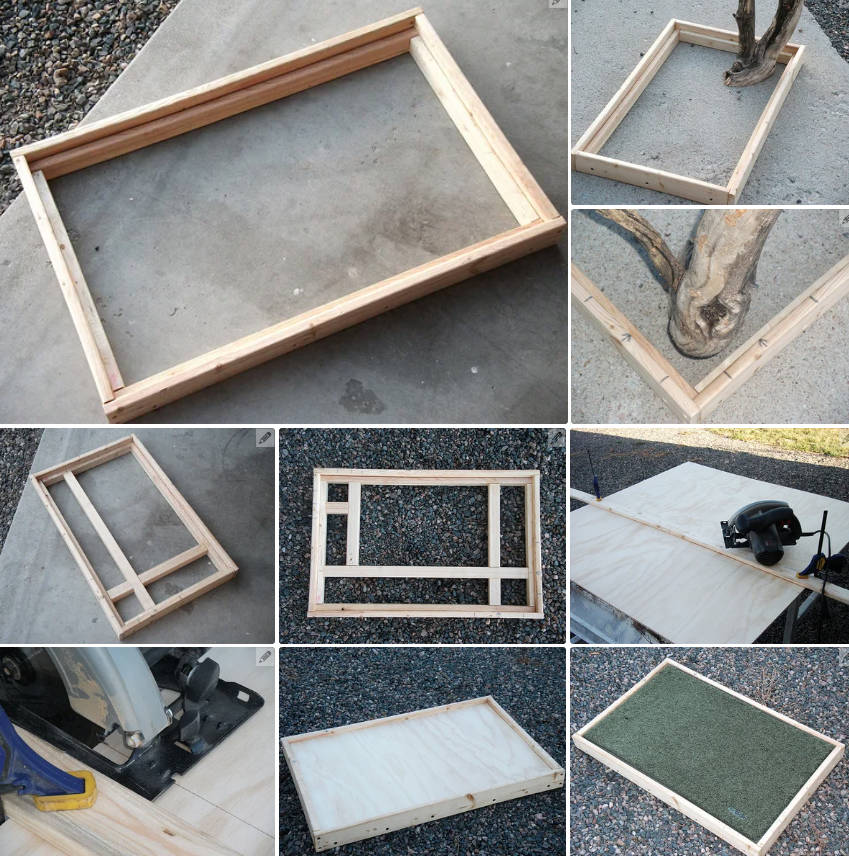

Step 2: Constructing the Base Platform
The base needs to be stable and supportive. I chose a 17” x 27” platform, matching my carpet samples.
- Cut 1″x3″ furring strips for the frame: two at 28.5” (length) and two at 17” (width).
- Assemble the frame with wood glue and screws, using a framing square or clamps for accuracy.
- Cut 1″x2″ strips for inner support: two at 27” (length) and two at 13.5” (width). Attach them inside the frame.
- Mark where the tree trunk will sit, and install 2″x2″ strip supports inside the frame.
- Cut a plywood base to fit inside the frame, and secure it with wood glue and 1-3/8″ screws.
- Attach carpet using adhesive or hook-and-loop fasteners.

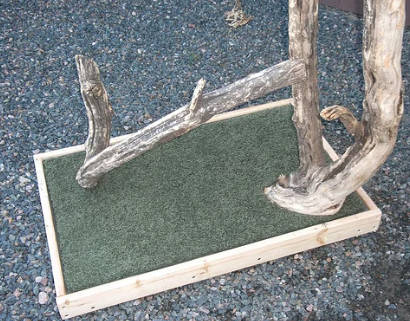

Step 3: Attaching the Limbs to the Base
Once the adhesive has dried, position your main trunk inside the base. Drill pilot holes through the trunk into the base and secure with long screws from underneath. If needed, use stands or clamps to keep it steady during installation.

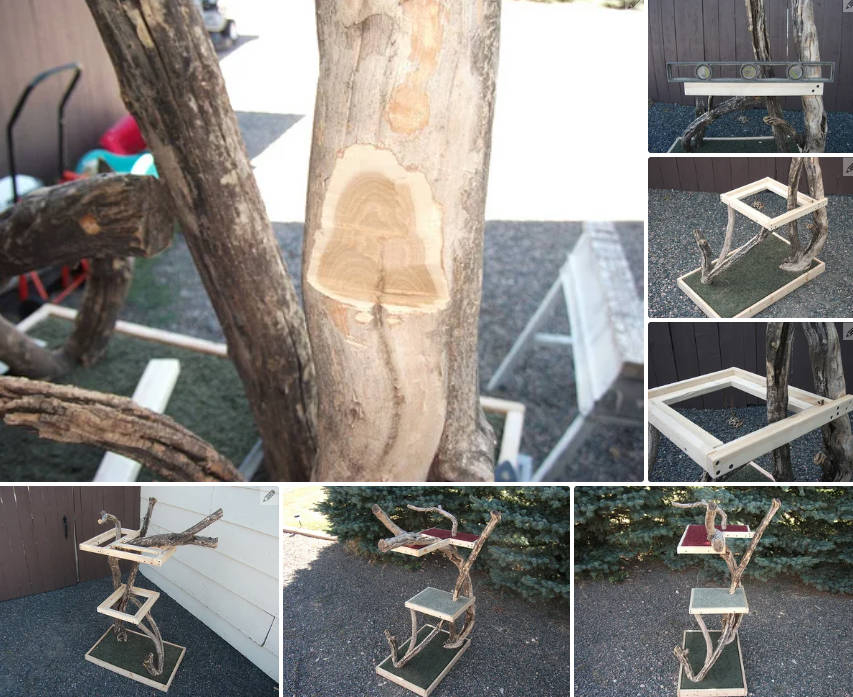

Step 4: Building Upper Platforms
Depending on your trunk height, you can add one or more platforms. I built two:
- Determine the height and mark where platforms will attach.
- Use 1″x2″ strips to create a supporting frame around the trunk. You may need to notch the trunk for better support.
- Secure each frame with wood glue and screws, leveling as you go.
- Attach inner support strips for the platform’s plywood base.
- Cut plywood to fit and secure it with screws.
- Cover each platform with carpet using adhesive.
Step 5: Painting or Staining
For a polished look, fill screw holes with wood filler and apply paint or stain to the frames. Let it dry completely before moving to the next step.

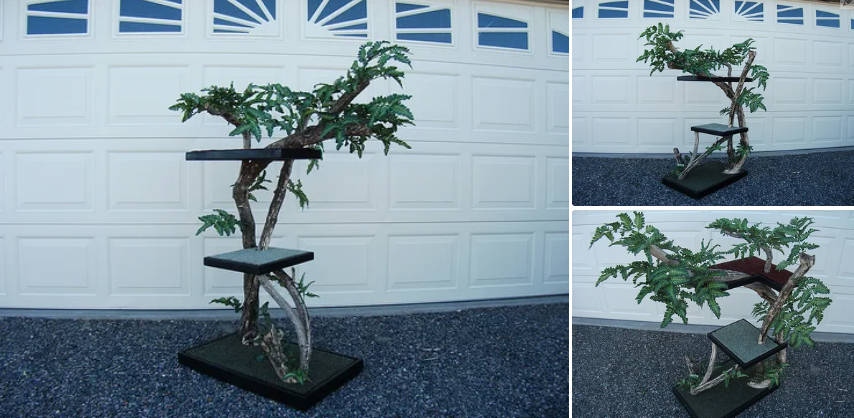

Step 6: Adding Greenery
Artificial leaves add a natural feel. Here’s how to attach them:
- Drill small holes into the branches (about 3/4” deep).
- Insert greenery stems into the holes.
- Adjust the placement to look natural, then secure with hot glue.

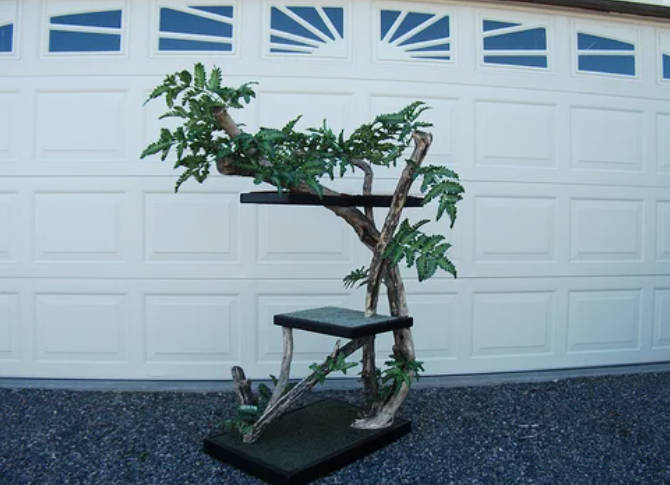

Summary
This DIY cat tree is an affordable, customizable, and durable alternative to expensive store-bought models. With a mix of recycled and purchased materials, you can create a sturdy tree that your cat will love while adding a decorative element to your home. Now, let’s grab those tools and get building!
This plan is a contribution by [Uptonb]. Project Via Instructables – Get the PDF Instructions here.
