Raised bed gardening offers a productive way to grow food while maximizing space and soil quality. I’ve been using raised beds for several years and converted an existing patch of grass into four 4ft x 12ft beds, totaling 192 square feet of growing area.
This setup can significantly reduce a household’s food budget while providing all the benefits of raised-bed gardening, such as improved drainage, better soil structure, and easier weed control.
Why This Plan Works
- Extends the Lifespan of Raised Beds: Prevents frequent wood replacement due to rot.
- Provides Structural Stability: Concrete braces add strength, ensuring the raised bed maintains its shape.
- Simplifies Future Repairs: Once the concrete brace is in place, replacing a board is much easier.
- Affordable and Customizable: Uses readily available materials while allowing for flexibility in bed dimensions.
- Ideal for Any Wood Size: Works with different wood dimensions, whether you prefer 2x6s, 2x8s, or larger boards.
What You Will Need
- Ready-mix concrete
- 1/4-inch plywood (for mold)
- 1×6 lumber (for mold)
- Wire mesh (rabbit wire works well)
- 1/2-inch PVC pipe (for bolt holes)
- Vegetable oil or any release agent
- Drywall screws
- 5/16-inch bolts with washers (appropriate length for your setup)
- Standard concrete tools (mixing bucket, trowel, level, etc.)
How to Reinforce Raised Bed Corners
Step 1: Making the Concrete Form
To create the concrete corner braces, first, construct a form using 1/4-inch plywood and 1×6 lumber. Cut the pieces to the correct sizes based on your raised bed dimensions. Before assembling, apply a thin layer of oil to the wood to act as a release agent, making it easier to remove the mold after the concrete has set.
Step 2: Adding Reinforcement to the Mold
To strengthen the concrete, place a piece of wire mesh inside the mold before pouring. Cut the mesh to fit within the mold, ensuring it sits between the bolt holders. The bolt holders are made from 1/2-inch PVC pipes placed within the mold to create predrilled holes for attaching the wooden boards later.
Step 3: Mixing and Pouring Concrete
Mix the ready-mix concrete according to the package instructions, ensuring consistency. Pour the concrete into the mold, covering the wire mesh completely. Allow the concrete to set for at least 24-48 hours. While concrete continues to cure for several days, this timeframe provides enough strength for the next steps.

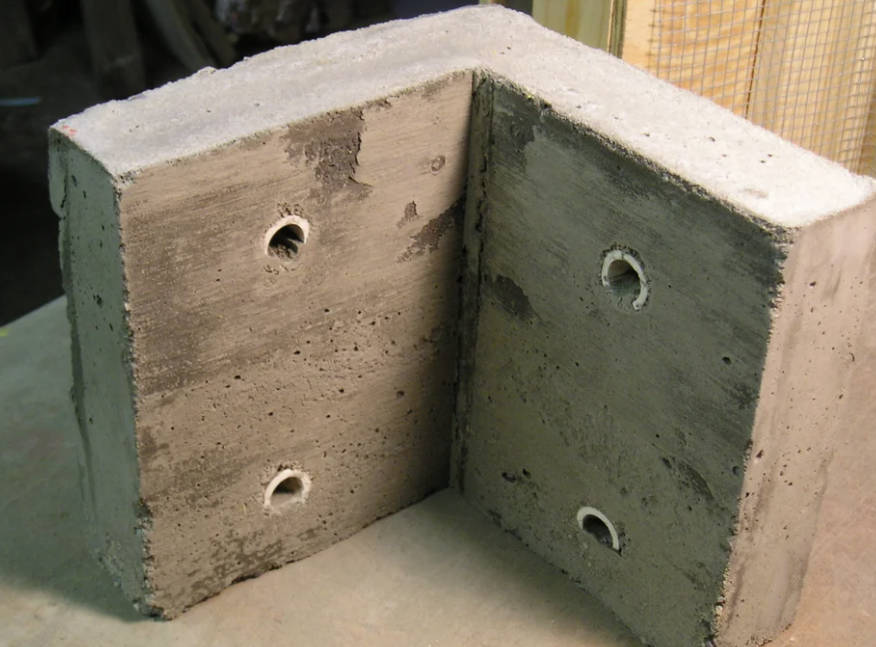

Step 4: Removing the Brace from the Mold
After the concrete has set, remove the screws from the mold and gently tap on the wood to separate it from the concrete. The result is a sturdy, reinforced corner brace with predrilled holes, ready to be installed.
Step 5: Assembling the Raised Bed
Using 5/16-inch bolts, attach the concrete braces to the wooden boards. Ensure each board fits securely against the braces. For my raised beds, I use 4ft-long end pieces and 12ft-long side pieces, but you can adjust these dimensions based on your space and needs.
Step 6: Filling the Bed with Soil
Once the bed is fully assembled, fill it with high-quality garden soil. I use a mix of homemade compost and commercial organic compost to maintain soil fertility. Depending on your gardening approach, you can further enhance the soil using different amendments suited to your plants’ needs.
Step 7: Replacing a Rotted End Piece
If you already have an existing raised bed with rotted wood, replacing it with this reinforced system is straightforward. Simply unbolt and remove the damaged piece, clean the area, and install the new corner brace. Attach the new end board using bolts through the predrilled concrete brace holes, securing it in place.

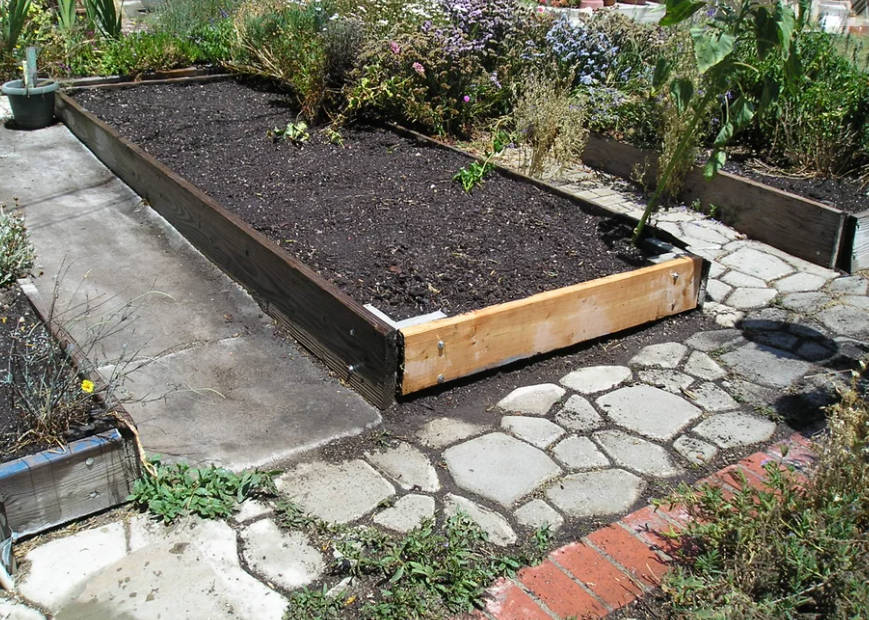

Step 8: The Finished Repair Job
With the new concrete brace installed, your raised bed will have significantly improved durability. Unlike standard wooden connections that rot quickly, the concrete reinforcement will help the structure last much longer, saving you time and money on future repairs.
Note: Allow the concrete to cure for a few extra days before exposing it to heavy moisture to ensure maximum strength.
Other Details Display
- Form Assembly: Use drywall screws to secure the mold components.
- Reinforcement Placement: Ensure wire mesh sits between the bolt holders to provide even strength distribution.
- Concrete Mixing Tip: Add water gradually while mixing to avoid excessive moisture, which can weaken the final structure.
- Installation Precision: Use a level when assembling the bed to keep corners square and ensure proper alignment.
- Soil Recommendations: Use a combination of compost, peat moss, and high-quality topsoil for optimal plant growth.
Summary
By reinforcing raised bed corners with concrete braces, we can extend the lifespan of our garden beds and reduce the need for frequent wood replacement. This simple yet effective method improves structural stability, simplifies repairs, and provides long-term durability. With these concrete corner reinforcements, your raised beds will withstand the test of time, keeping your garden thriving for years to come.
This plan is a contribution by [Creativeman]. Project Via Instructables – Get the PDF Instructions here.
